Portable Dewpoint Meter

Extreme Measuring Range: Covers from -110 to +60 °Ctd, making it suitable for almost any industrial application.
Dual-Parameter Monitoring: Measures both dew point and pressure (up to 1.7 MPa.a) simultaneously with a single probe.
Smart Trend Prediction: Uses advanced logic to predict steady-state values in advance, cutting down on measurement waiting time.
High Accuracy & Stability: Calibrated at 10+ points to ensure ±2 °Ctd accuracy with outstanding long-term sensor stability.

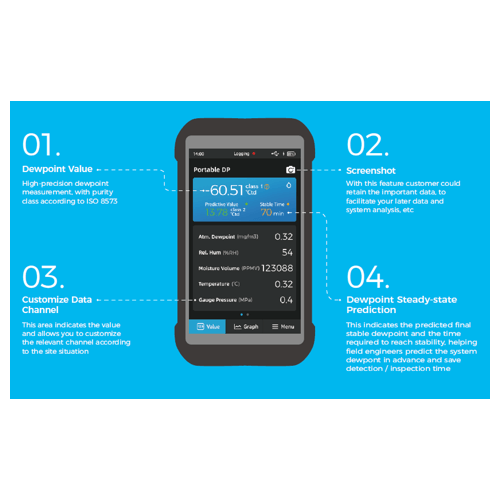

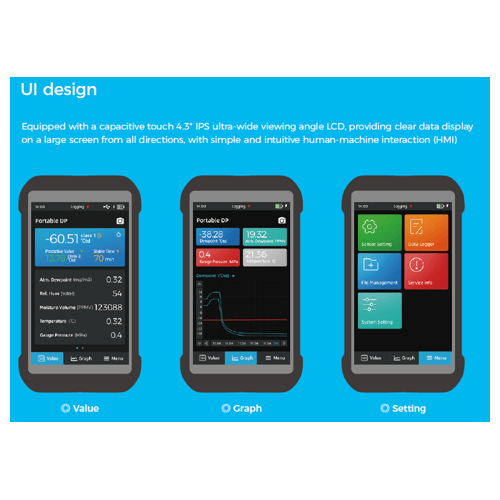

Smartphone-Like Interface: Features a 4.3″ IPS touch screen for clear data visualization, real-time graphing, and easy data logging.
Plug-and-Play Portability: Compact handheld design that is ready to use—just connect the PTFE tube and start testing anywhere.

Product Specification :

Item	Specification
Dewpoint Measuring Range	A Series: −60 ~ +60 °CtdB Series: −110 ~ +60 °Ctd
Temperature Range	−40 ~ +100 °C
Pressure Range	0 ~ 1.7 MPa(a)
Dewpoint Accuracy (Air or Nitrogen)	+20 ~ −60 °Ctd: ±2 °Ctd−60 ~ −100 °Ctd: ±3 °Ctd
Temperature Accuracy	0 ~ +50 °C: ±0.3 °C (Standard)−40 ~ 0 °C & +50 ~ +100 °C: ±0.5 °C (Standard)
Pressure Accuracy	±0.3 %FS @ 23 °C
Pressure Drift with Temperature	±0.001 MPa / 10 °C
Response Time (Dewpoint)	−50 → +20 °Ctd: 20 sec [40 sec]+20 → −50 °Ctd: 1 min [3 min]
Pressure Response Time	<1 sec
Power Supply	PD fast charger, 20 VDC 1 A
Charging Interface	Type-C
Charging Time	2.5 h
Battery Life	16 h (at 20 °C operating temperature)
Medium Temperature	−30 ~ +70 °C
Operating Temperature	0 ~ +50 °C
Storage Temperature	−10 ~ +60 °C
Relative Humidity	0 ~ 95 %RH
Sample Gas Flow Rate	≥ 2 L/min
Pressure (Operating)	0 ~ 1.7 MPa(a)
Data Output	Type-C interface
Display	4.3″ IPS LCD with capacitive touch
Data Storage	1.5 GB storage, up to 200,000,000 values
Process Connection	Dewpoint sensor: ISO G1/2 thread
Measuring Chamber	6 mm hose with quick connector
