Ultrasonic Level Meter

Ultrasonic Level Meter

Ultrasonic Level Meter

Maintenance-Free Non-Contact Sensing: Provides stable level measurements for liquids or bulk materials without physical contact, eliminating wear and reducing long-term maintenance costs.

Versatile Range & High Precision: Supports measuring distances from 4m up to 30m with a resolution of 3mm (or 0.1%), ensuring accuracy across various tank sizes.

Intelligent Signal Processing: Features advanced “Intellectual Signal Treatment” technology, allowing the instrument to adapt to diverse and challenging operating conditions.

Durable & Chemical Resistant: Offers selectable ABS or PTFE probes that are acid and alkali resistant, making the device suitable for harsh, corrosive environments.

Enhanced Industrial Protection: Built-in over-voltage, over-current, and lightning protection safeguard the device against electrical surges and environmental damage.

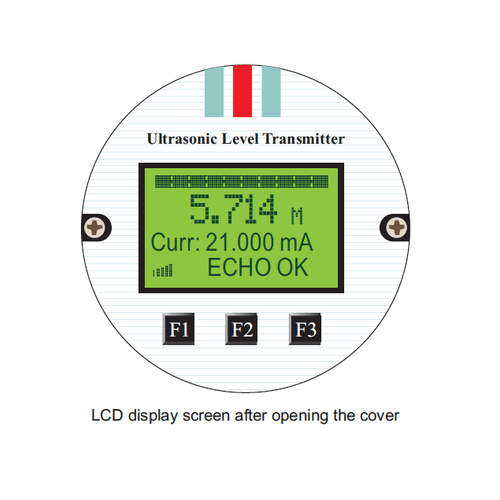

Seamless System Integration: Equipped with a large LCD for easy debugging and standard 4-20mA / HART outputs for direct connection to industrial control systems.

Category:

Product Specifications :

Function Specification
Level Range 4, 6, 8, 10, 12, 15, 20, 30 m
Accuracy 0.5% – 1.0%
Resolution 3 mm or 0.1%
Display LCD Display
Output Two-wire 4–20 mA / 250 Ω Load, HART
Relay Output No
Power Supply Standard 24 VDC
Environmental Temperature Transmitter: -20 ~ +60 °CSensor: -20 ~ +80 °C
Communication No
Protection Class Transmitter: IP65Sensor: IP68
Cable No
Probe Installation Based on the level range
