Product Specification:
| Item | Specification |
| Power Supply | 24V AC/DC |
| Measuring Range | 0–5 m/s0–10 m/s0–15 m/s0–20 m/s0–30 m/s |
| Output Signal | 0–5 V0–10 V4–20 mARS485 (Modbus RTU) |
| Accuracy | ±(0.2 m/s + 3% of measured value) (0.5–30 m/s) |
| Power Consumption | 0.3 W |
| Protection Rating | IP64 |
| Sensing Principle | Thermal film sensor |
| Operating Temperature | 0 ~ 60 °C |
| Operating Humidity | 5% ~ 95% RH (No condensation) |
| Probe Length | 220 mm (accessory mounting)
190 mm (flange mounting) |
| Remote type : | Standard:1.5 Meter |
| Probe Material | ABS Plastic / Aluminum Alloy |

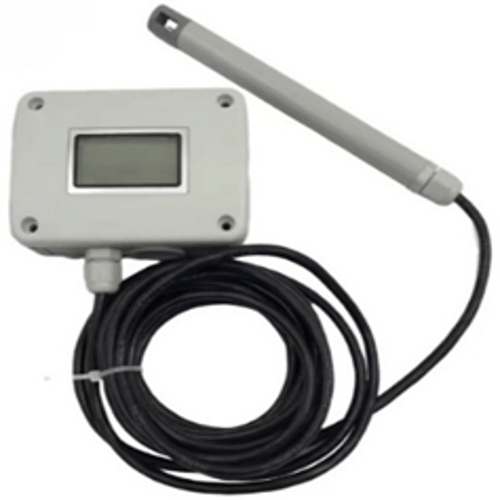

Experience superior accuracy with our Thermal Air Velocity Transmitter, designed for HVAC, cleanrooms, and industrial ventilation. Offering a wide measuring range up to 30 m/s and stable performance even in high-temperature environments. Choose between metal or plastic probes to fit your specific application. Supports RS485 Modbus, 4-20mA, and 0-10V outputs for seamless system integration.
If these products meet your requirements, please contact us for the product catalog:
Email: info@gw1tech.com
